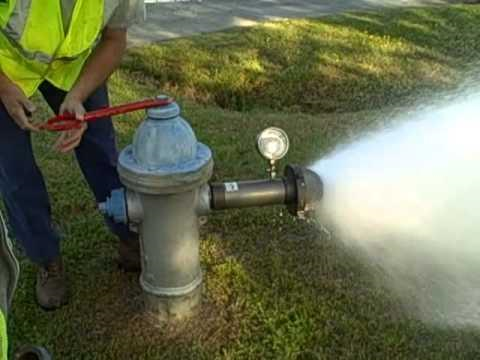

In this picture, a flow test is being done. A flow test needs to be done to track the pressure the system is giving out. The water pressure will help the designer design a sprinkler system for a building. You can conduct the test by appending guage cap to test hydrant. Fix any remaining caps.Open test hydrant, vent air from hydrant body through the valve on the check cap get together. Close it when air is vented.At the stream hydrant, set the Little Hose Monster™ with check to the Pitotless Nozzle™ in a fitting area for streaming water. Append Remote Reader and check to the Pitotless Nozzle. Attach hydrant entryway valve to the hydrant and close the door valve. Fix different covers. Append the hose to the Pitotless Nozzle and Little Hose Monster get together. Direct the test. Record static strain perusing from check cap. Gradually open hydrant utilizing the door valve to cleanse air from the hydrant. At the point when hydrant is brimming with water, open entryway valve to wanted flowrate (typically full open). When the flowrate settles, Record spout strain from the distant peruser and at a similar second. At the test hydrant record the lingering pressure perusing from the measure cap. Now, the test is finished. Gradually close door valve on stream hydrant, then, at that point, close the hydrant. Eliminate test hardware from hydrant. Supplant and fix cap. On the off chance that the hydrant is a dry barrel type, note that water empties appropriately out of the hydrant. Record the quantity of minutes that water was streaming. This can be utilized to represent the measure of water utilized during the stream test. At the test hydrant Close the hydrant. Eliminate check cover and supplant hydrant cap. In the event that the hydrant is a dry barrel type, note that water empties appropriately out of the hydrant.
